Digital VoIP Gateway

MTG3000T

  • Gigabit Ports
  • T.38/T.30
  • SIP-SIP
  • Multi-codecs
  • NGN/IMS
  • SNMP

Product Overview

MTG3000T series is a flexible and high-performance transcoding gateway with up to 1568 transcoding sessions. It converts simultaneous channels of transcoding among a number of popular voice codecs like G.711A/U, G.723.1, G.729A/B, iLBC,G.726 and AMR from IP to IP, bridge differences in capabilities between the telecommunications systems with high reliability.



Technical Features

Up to 4 Digital Processing Unit (DTU)
SIP Trunk Groups
2 GE ports
256 SIP trunks
Redundant Power Supply
Outbound Proxy supported
G.711—G.711: 2048 sessions
Maximum 256 SIP accounts
G.711—G.729: 1568 sessions
Cloud based management system
G.711—G.723: 1344 sessions

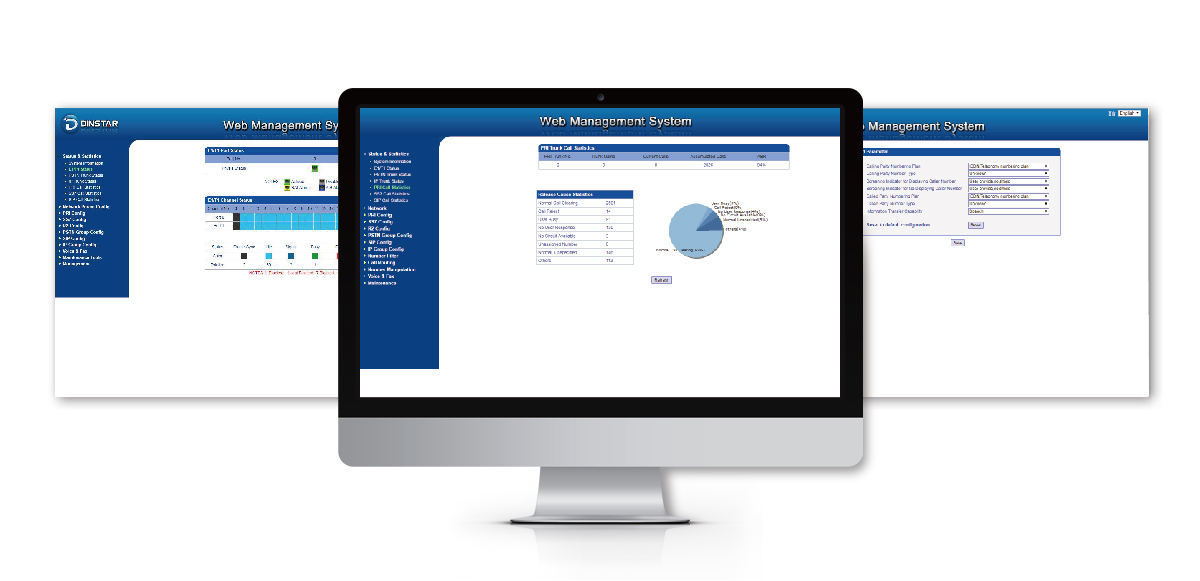

Web GUI management
G.711—G.726: 2048 sessions
SNMP G.711—iLBC: 960 sessions
Firmware Upgrade via TFTP/FTP/HTTP
G.711— AMR: 832 sessions
Support configuration backup/restore
G.723—G.729: 896 sessions
Local maintenance via console
SIP, SIP-T
Call trace/syslog
SIP Trunk Work Mode: Peer/Access
Call test
SIP/IMS Registration: with up to 256 SIP Accounts
Network capture
NAT: Dynamic NAT, Report
Signaling hunter
Caller/Called Number Black lists
Voice codecs: G.711a/μ law,G.723.1,G.729A/B, iLBC, AMR
Caller/Called Number White lists
FAX: T.38 and Pass-through
IP access rule list
Support Modem/POS


products

High Capacity Transcoding Gateway

Transcoding from IP to IP

Up to 2048 VoIP Sessions

Dual Power Supplies

Scalable by 4 DTUs Boards

Multiple SIP trunks

Fully compatible with mainstream VoIP platforms

products

Rich Experiences on PSTN Protocols

2U Size

T.38 and Pass-through fax

Support modem and POS machines

Flexible dialling rules, thus adapting to different requirements of different environments.

More than 10-year experiences to integrate with a wide range of Legacy PBXs / Service providers' PSTN networks
