GSM/3G/4G VoIP Gateway

UC2000-VF

  • VoLTE
  • Voice
  • SMS
  • API
  • SIP
  • SIMCloud

Product Overview

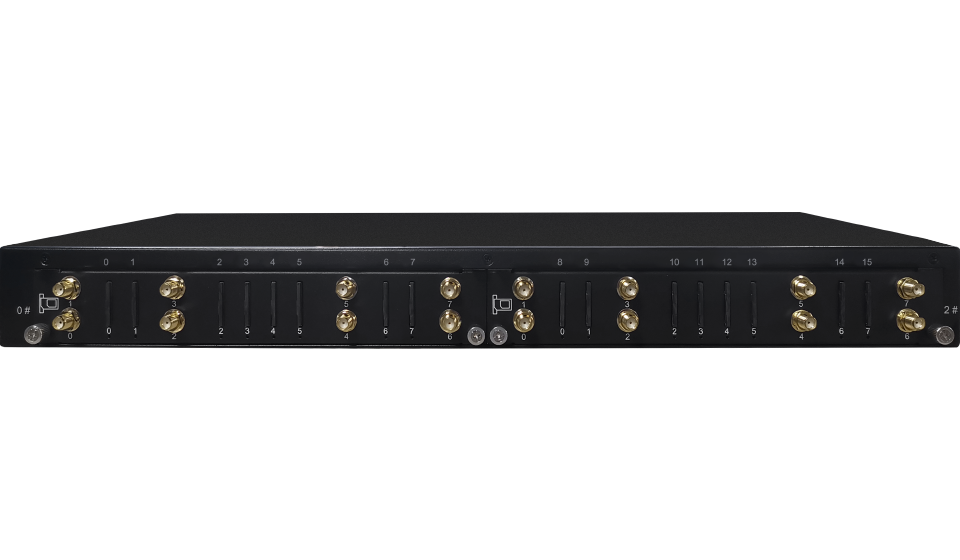

Dinstar UC2000-VF is a 16-channel GSM/3G/4G VoIP Gateway in 1U field-proven hardware design, used to establish connections between mobile and VoIP networks, for transmission of both voice and SMS. Integrated GSM/WCDMA/LTE connectivity and SIP protocol compatible with mainstream VoIP platforms, it is suitable for enterprises, multi-site organizations, call terminators and areas with limited landline like rural area to cut down telephony costs and enable easy & efficient communications.

It works standalone and also supports remote SIMs management as an option with Dinstar SIMBank and SIMCloud.



Technical Features

8/16 SIM slot, 8/16 antennas
Signaling & RTP Encryption
Built-in antennas combiner (Optional)
SMPP for SMS
GSM: 850/900/1800/1900Mhz
HTTP API for SMS
WCDMA: 900/2100Mhz or 850/1900Mhz
Polarity Reversal
LTE: Multiple frequency choices for different countries
PIN Management
SIP v2.0, RFC3261
SMS/USSD
Codecs: G.711A/U , G.723.1, G.729AB
SMS to Email, Email to SMS
Echo Cancellation
Call Waiting/Call Back
DTMF: RFC2833,
SIP Info Call Forward
Programmable Gain Control
GSM Audio Coding: HR, FR,EFR, AMR_FR,AMR_HR
Mobile to VoIP, VoIP to Mobile
HTTPS/HTTP Web Configuration
SIP Trunk and Trunk Group
Configure Backup/Restore
Port and Port Group
Firmware Upgrade by HTTP/TFTP
Caller/Called Number Manipulation
CDR(10000 Lines Storage Locally)
SIP Codes Mapping
Syslog/Filelog
White/Black List
Traffic statistics: TCP,UDP,RTP
PSTN/VoIP Hotline
VoIP Call Statistics
Abnormal Call Monitor
PSTN Call statistics: ASR,ACD,PDD
Call Minutes Limitation
IVR Customization
Balance Check
Auto Provisioning
Random Call Interval
SIP/RTP/PCM Capture
Auto CLIP
Work with Dinstar SIMCloud/SIMBank (Optional)


products

16-channel VoIP GSM/3G/4G Gateway

GSM/WCDMA/LTE support

Voice over LTE (VoLTE)

Hot Swappable SIM Cards

Compatible with mainstream VoIP platform

Mobility Extension, never miss a call

SMS sending & receiving, SMS API

Credit Limit management

Auto CLIP

products

Application

Mobile connectivity for SME IP phone system

Mobile trunking for Multi-site offices

GSM/3G as voice backup trunks

Call termination for service providers

Land-line replacement for rural area

Bulk SMS service

Call Center / Contact Center Solution
